6U All-Round AI Server

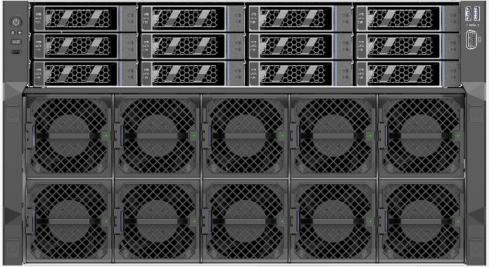

R966
The R966 is a high-end 6U rack-mounted server built on 6th Gen Intel® Xeon® Scalable processors. It can be equipped with up to 8 pieces of 600W professional GPU AI acceleration cards, supporting multiple topologies to cover various small and medium-scale AI inference and training scenarios, and meet the demands of internet, autonomous driving, OEM and other customers.
Products Specification
| Model | R966 |
| Form Factor | 6U AI Server |
| Processor | Supports 2×6th Gen Intel® Xeon® Scalable Processors, TDP up to 350W |
| Memory | Up to 32×DDR5 memory slots, maximum frequency 6400MHz.Supports multiple protection modes including memory mirroring, memory hot spare and memory fault isolation |
| Storage Controller | Supports JBOD pass-through, RAID 0, 1, 10, 5, 50, 6, 60 and multiple storage modes.When configured with RAID controller, it supports supercapacitor cache protection, RAID level migration, disk roaming, self-diagnosis, Web-based remote configuration, and secure boot for RAID cards |
| Local Storage | Front bay: Max. 12×3.5-inch or 24×2.5-inch hot-swappable drives, compatible with NVMe SSDsRear bay: Max. 2×U.2 drivesInternal bay: 1×PCIe M.2 + 1×onboard eMMC chip |
| Network Interfaces | OCP 3.0 network card with NCSI function, supports 2 OCP 3.0 slots.Optional OCP port configurations: 2×GE, 2×10GE, 2×25GE, 2×100GE, 2×200GE |
| PCIe Expansion | Up to 18×PCIe 5.0 expansion slots including 1 OCP slot.Supports up to 8 dual-width GPUs, expandable to 10 dual-width GPUs |
| Additional Interface | Rear chassis: 1×RJ-45 management port, 2×USB 3.0, 1×VGA |
| Front chassis: 2×USB 3.0 + 1×VGA | |
| Power Supply | Optional 2700W / 3200W CRPS high-efficiency hot-swappable Platinum PSUs, supports N+N redundancy. |
| Input voltage range: 100~240V AC (refer to device nameplate for actual rated input) | |
| Fan Modules | 15*8080 hot-swappable fans with N+1 redundancy support |
| Management | Integrated BMC chip with 1Gbps RJ45 management port. Compliant with Redfish, SNMP, IPMI 2.0 industry standards. Features HTML5-based iKVM remote management interface, delivering comprehensive fault diagnosis, automated O&M and full remote control functions. Supports dual-flash BMC backup. |
| OS Support | RedHat Enterprise Linux, SUSE Linux Enterprise Server, Rocky, Ubuntu, etc. |
| Operating Temperature | 5°C ~ 35°C during operation |
| Chassis Dimensions | 850mm (L) × 446mm (W, without mounting ears) × 263.5mm (H) |
| 850mm (L) × 482mm (W, with mounting ears) × 263.5mm (H) | |
| Weight | Max. 80KG (varies by actual hardware configuration) |
Products Features
- Ultimate Performance
- Powered by up to 2×6th Gen Intel® Xeon® Scalable Processors, single CPU supports up to 86 cores for powerful parallel computing performance.
- Equipped with up to 32×DDR5 memory slots at maximum 6400MHz, memory performance improved by 15%.
- Compatible with multiple topologies including No Switch, Single Uplink and Dual Uplink; supports 8×600W GPU cards and N+N redundant power supplies.
- Extremely Quiet & Energy-Efficient
- IEquipped with 15 customized high-performance fans, airflow increased by 30% to deliver extreme heat dissipation and maintain GPUs running at full performance.
- Adopts upper and lower layered air duct isolation design with partitioned heat dissipation, reducing system air resistance and improving fan cooling efficiency.
- Streamlined Operations & Intelligent Management
- Out-of-band visualization management enables remote and precise location tracking of physical devices to further optimize maintenance efficiency.
- Automatic crash logging with online viewing and download of crash logs for accurate fault diagnosis.
- Provides real-time health monitoring and reporting for critical components, delivering comprehensive intelligent services throughout the entire product lifecycle.
