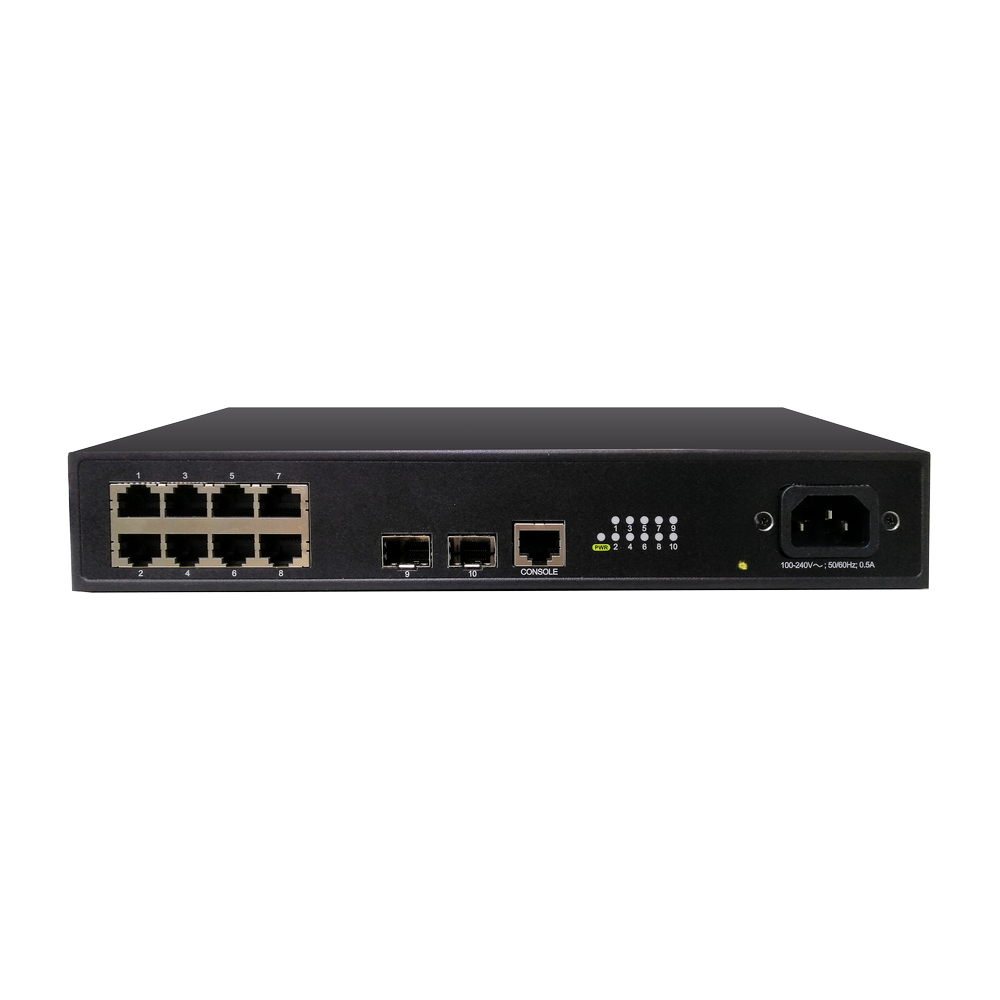

SWITCH

NS4300-10P-SI

  • 8*10/100/1000Base-T+2*100/1000Base-X (SFP)
  • 1*Console, 1*Reset port
  • AC power supply
  • Switching capacity: 20Gbps
  • Forwarding rate: 14.88Mpps

Products Specification

ItemNS4300 -10P-SI
Ports8*100/1000Base-T + 2*100/1000Base-X (SFP) Auto-MIDX
Performance
Switching Capacity20Gbps
Forwarding Rate14.88Mpps
Flash32M
RAM128M
MAC ADDRESS8K
Jumbo Frame10K
ACL Table1408
Queues per port8
VLAN TABLE4K
Physical Features
Dimension(W×H×D)266mm*43.6mm*161mm
Power Input100~240VAC, 50~60Hz
Power Consumption< 8w
CoolingPassive
TemperatureWorking 0°C~50°C, Storage -40°C~70°C
Relative Humidity5%~95%, non-condensing
EMC SafetyCE, RoHS
Main Features
ForwardingStorage and Forwarding
VLANPort-based VLAN, IEEE802.1Q, private VLAN, Protocol VLAN, Voice VLAN, MAC VLAN
Normal QinQ, Selective QinQ, Flexible QinQ
VLAN Translation, N:1 VLAN Translation
DHCPIPv4/IPv6 DHCP Client, IPv4/IPv6 DHCP Relay
Option 82, Option 37/38
IPv4/IPv6 DHCP Snooping, IPv4/IPv6 DHCP Server
ReliabilitySpanning Tree802.1D STP, 802.1W RSTP, 802.1S MSTP
Root Guard, BPDU Guard, BPDU Forwarding
LACP8 groups / 8 ports
L2 Ring ProtectionMRPP ERPS(G.8032)
Loopback Detection
Fast Link

Datasheet
