SWITCH

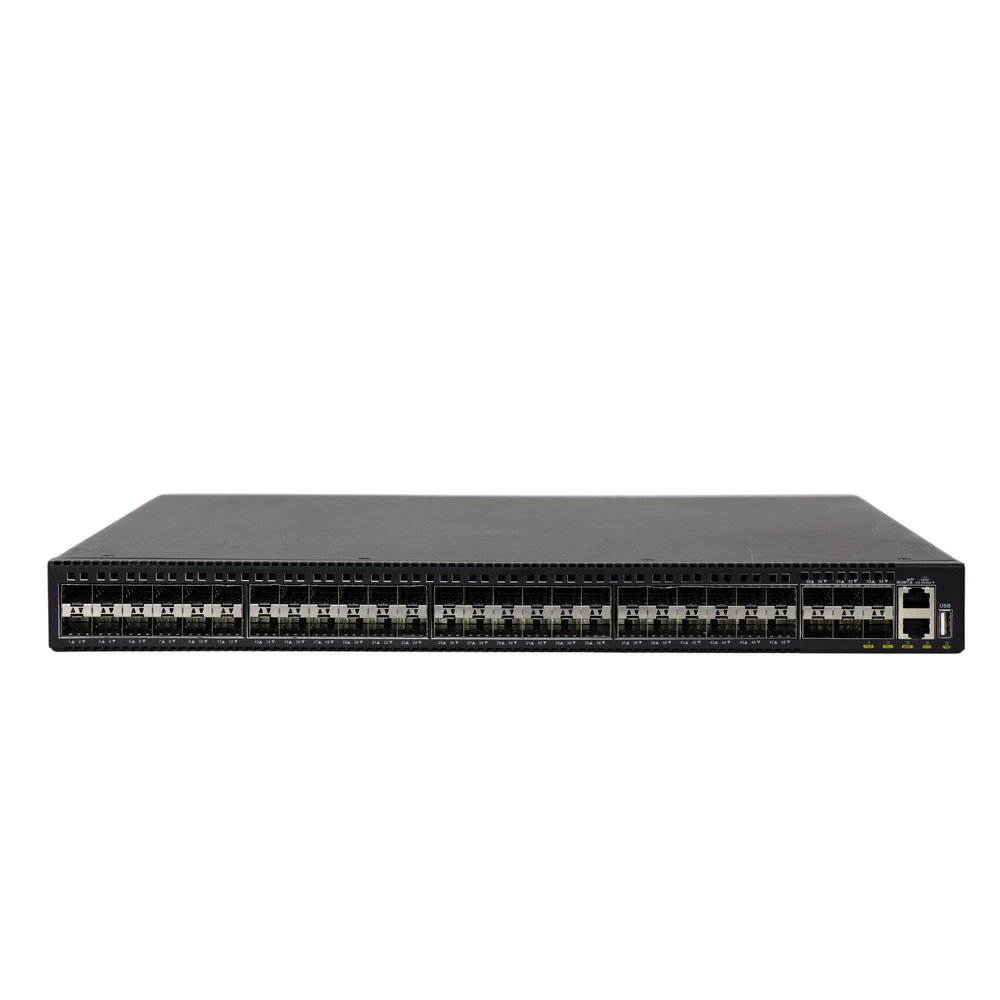

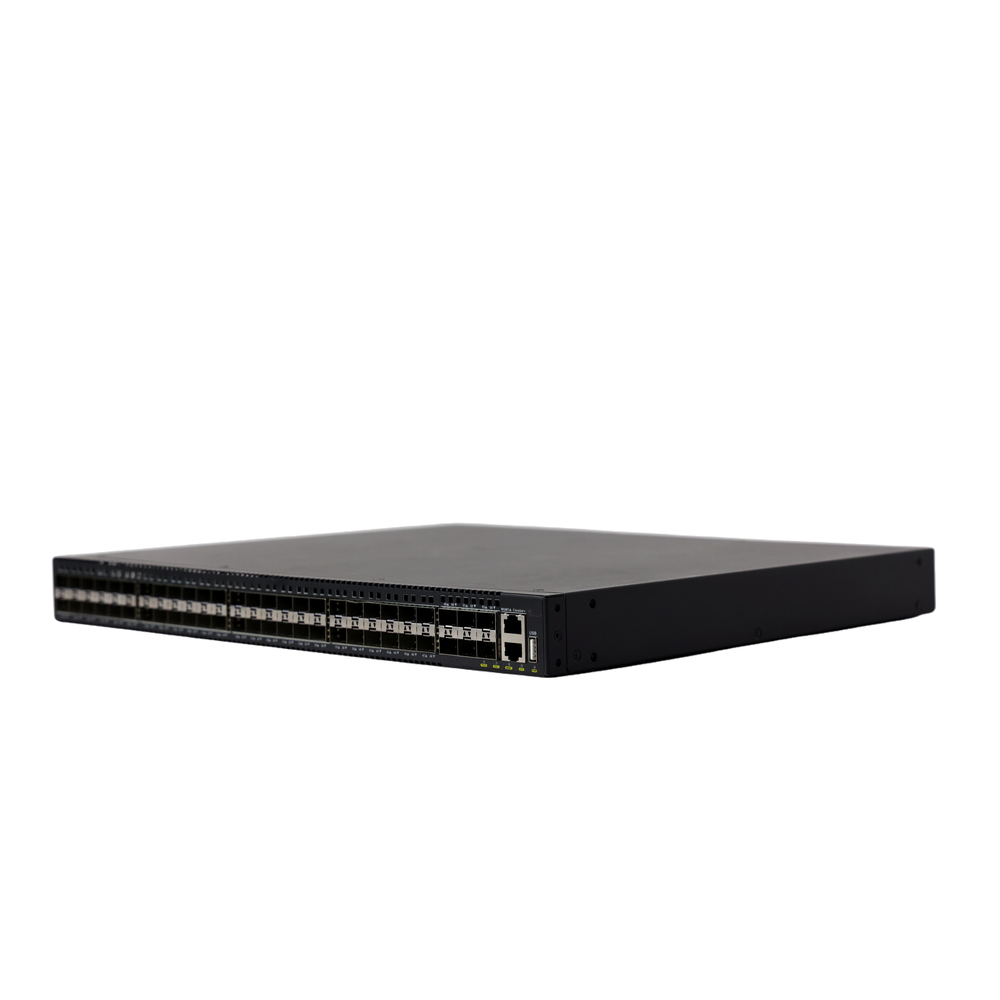

NS6300X-48S6X-HI
- 48*100/1000Base-X(SFP) + 6*10GbE(SFP+)+ 1*extended module slot
- 1*Console, 1*USB, 1*RJ45 management port

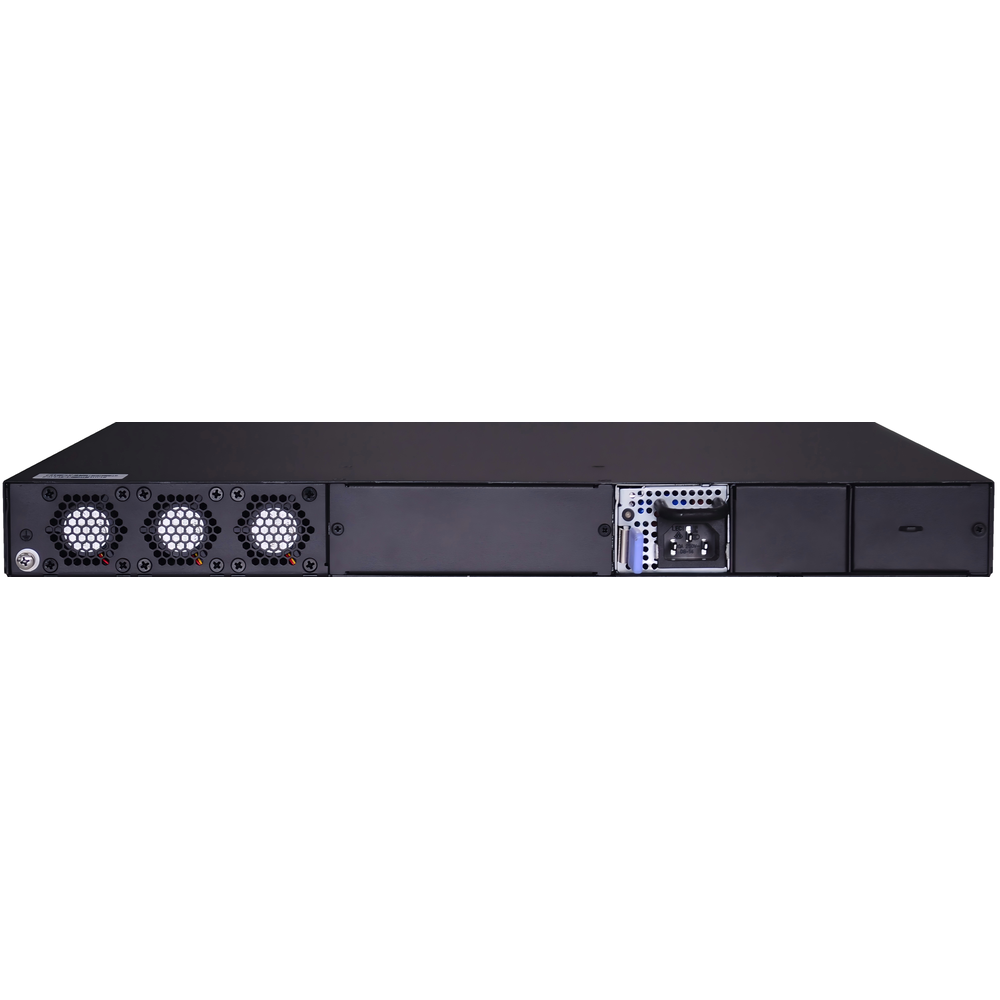

- AC power +optional modular AC
- Switching capacity: 216Gbps
- Forwarding rate: 161Mpps
Products Specification
| Item | NS6300X-24T6X-HI | NS6300X-48T6X-HI | NS6300X-24S6X-HI | NS6300X-48S6X-HI |
| Physical port | 24*10/100/1000Base-T + 6*10GbE(SFP+) + 1*slot Auto-MIDX | 48*10/100/1000Base-T + 6*10GbE(SFP+) + 1*slot Auto-MIDX | 24*100/1000Base-X(SFP) + 6*10GbE(SFP+) + 1*slot | 48*100/1000Base-X(SFP) + 6*10GbE(SFP+) + 1*slot |
| Management port | 1*RJ45 Ethernet Management port | |||
| 1*Console port | ||||
| 1*USB2.0 interface | ||||
| Performance | ||||
| Switching Capacity | 168Gbps | 216Gbps | 168Gbps | 216Gbps |
| Forwarding rate | 125Mpps | 161Mpps | 125Mpps | 161Mpps |
| Jumbo Frame | 12K | 12K | 12K | 12K |
| MAC Address | 32K | 32K | 32K | 32K |
| ARP Table | 8K | 8K | 8K | 8K |
| Routing Table | 12K | 12K | 12K | 12K |
| ACL Table | 3K | 3K | 3K | 3K |
| Physical | ||||
| Dimension (W*H*D) | 440mm*44mm*380mm | 440mm*44mm*380mm | 440mm*44mm*380mm | 440mm*44mm*380mm |
| Relative Humidity | 5%~95%, non-condensing | |||
| Temperature | Working 0°C~50°C, storage -40°C~70°C | |||
| Power Supply | Modular AC:100~240VAC, 50~60Hz Standard with AC + optional modular AC | |||
| Power Consumption | <65W | <80W | <75W | <100W |
| Main Features | ||||
| L1, L2 Features | IEEE802.3(10Base-T), IEEE802.3u(100Base-TX), IEEE802.3z(1000BASE-X), IEEE802.3ab(1000Base-T), IEEE802.3ae(10GBase), IEEE802.3x, IEEE802.3ak(10GBASE-CX4) | |||
| Port loopback detection LLDP and LLDP-MED UDLD 802.3ad LACP, max 128 group trunks with max 8 ports for each trunk LACP load balance ERPS (G.8032) | ||||
| N:1 Port Mirroring RSPAN | ||||
| IEEEE802.1d(STP) IEEEE802.1w(RSTP) IEEEE802.1s(MSTP) Root Guard BPDU Guard BPDU Tunnel | ||||
| 802.1Q, 4K VLAN MAC VLAN, Voice VLAN, PVLAN, Protocol VLAN, Multicast VLAN QinQ, Selective QinQ GVRP N:1 VLAN Translation Broadcast / Multicast / Unicast Storm Control | ||||
| IGMP v1/v2/v3 Snooping and L2 Query ND Snooping MLDv1/v2 Snooping | ||||
| Port Security | ||||
| Flow Control: HOL, IEEE802.3x Bandwidth Control | ||||
| L3 Features | Static Routing, RIPv1/v2, ISIS, OSPFv2, BGP4 OSPFv3, BGP4+ OSPF multiple processes VRF-Lite LPM Routing Policy-based routing (PBR) for IPv4 and IPv6 VRRP URPF ECMP BFD | |||
| IGMP v1/v2/v3, IGMP Proxy Static Multicast Route Multicast Receive Control Illegal Multicast Source Detect | ||||
| ARP Guard, Local ARP proxy, Proxy ARP, ARP Binding, Gratuitous ARP, ARP Limit Anti ARP Cheat, Anti ARP Scan | ||||
| DNS Client, DNS Relay | ||||
| GRE Tunnel | ||||
| IPv6 | 6to4 Tunnel, Configured Tunnel, ISATAP Tunnel, GRE Tunnel ICMPv6, ND, DNSv6 IPv6 LPM Routing, IPv6 Policy-based Routing (PBR) IPv6 VRRPv3, IPv6 URPF, IPv6 RA RIPng, OSPFv3, BGP4+ MLD Snooping, IPv6 Multicast VLAN MLDv1/v2, IPv6 Anycast RP, IPv6 ACL, IPv6 QoS | |||
| QoS | 8 Queues SP, WRR, SP+WRR WRED Traffic Classification Based on 802.1p COS, ToS, DiffServ DSCP, ACL, port number Traffic Policing PRI Mark/Remark | |||
| ACL | IP ACL, MAC ACL, IP-MAC ACL Standard and Expanded ACL Based on source/destination IP or MAC, IP Protocol, TCP/UDP port, DSCP, ToS, IP Precedence), VLAN, Tag/Untag, CoS Redirect and statistics Rules can be configured to port, VLAN, VLAN routing interfaces Time Ranged ACL ACL rules can be configured to port, VLAN | |||
| Security | 802.1x AAA Port, MAC-based authentication Accounting based on time length and traffic Guest VLAN and auto VLAN | |||
| RADIUS for IPv4 and IPv6 | ||||
| TACACS+ for IPv4 and IPv6 | ||||
| MAB | ||||
| DHCPv4/v6 Traffic Monitor | DHCP Server/Client for IPv4/IPv6 DHCP Relay/Option 82 DHCP Snooping/Option 82 | |||
| Traffic Monitor | sFlow Traffic Analysis | |||
| Security Network Management | CLI, WEB, Telnet, SNMPv1/v2c/v3 through IPv4 and IPv6 Syslog and external Syslog Server HTTP SSL SNMP MIB, SNMP TRAP FTP/TFTP SNTP/NTP RMON 1,2,3,9 Authentication by Radius/TACACS SSH v1/v2 Dual firmware images/ Configuration files 802.3ah OAM, 802.1ag OAM | |||
| Data Center Features | VSF (Virtual Switch Framework) | |||
