SERVER
Heterogeneous Computing AI Server
R965A
The R965A is a high-end 6U rack server built for 4th/5th Generation AMD EPYC processors. It supports multiple GPU topologies and features enhanced power supply and cooling systems. It reserves N+N redundant power supply capacity to support 8 single 1000W GPUs, easily meeting the growing computing power demands in the market and suitable for large-scale cluster deployment.
Products Specification
| Model | R965A |
| Processor | Supports 2*4th/5th Generation AMD EPYC processors, with up to 192 cores per single CPU. |
| Memory | Up to 24*DDR5 memory slots, supporting a maximum memory frequency of 6400 MT/s. |
| GPU | Supports up to 8 double-width GPUs. |
| Storage Controller | Integrated SATA hard drive controller. |
| When equipped with a RAID controller, it supports multiple storage schemes including RAID 0/1/10/5/50/6/60. | |
| Supports supercapacitor cache protection. | |
| Local Storage | Front: up to 12*2.5-inch hard drives, compatible with NVMe drives. |
| Internal: 2*SATA M.2 slots + 1 onboard eMMC chip. | |
| Network Interfaces | OCP 3.0 network adapter with NCSI function. |
| PCIe Expansion | Up to 18*PCIe 5.0 expansion slots, plus an additional dedicated OCP slot. |
| Additional Interfaces | Rear panel: 1*RJ45 management port, 2*USB 3.0 ports, 1*VGA port. |
| Front panel: 2*USB 3.0 ports + 1*VGA port. | |
| Power Supply | Optional 2700W / 3200W CRPS high-efficiency Platinum/Titanium hot-swappable power supplies with N+N redundancy support. |
| Fans | 15*hot-swappable fans with N+1 redundancy support. |
| Management | Integrated BMC chip, providing 1*Gbps RJ45 management port, compatible with standard interfaces including Redfish, SNMP and IPMI 2.0. |
| OS Support | RedHat Enterprise Linux、SUSE Linux Enterprise Server、Rocky、Ubuntu |
| Operating Temperature | 5°C ~ 35°C during operation |
| Chassis Dimensions | 850mm*446mm*263.5mm |
Products View

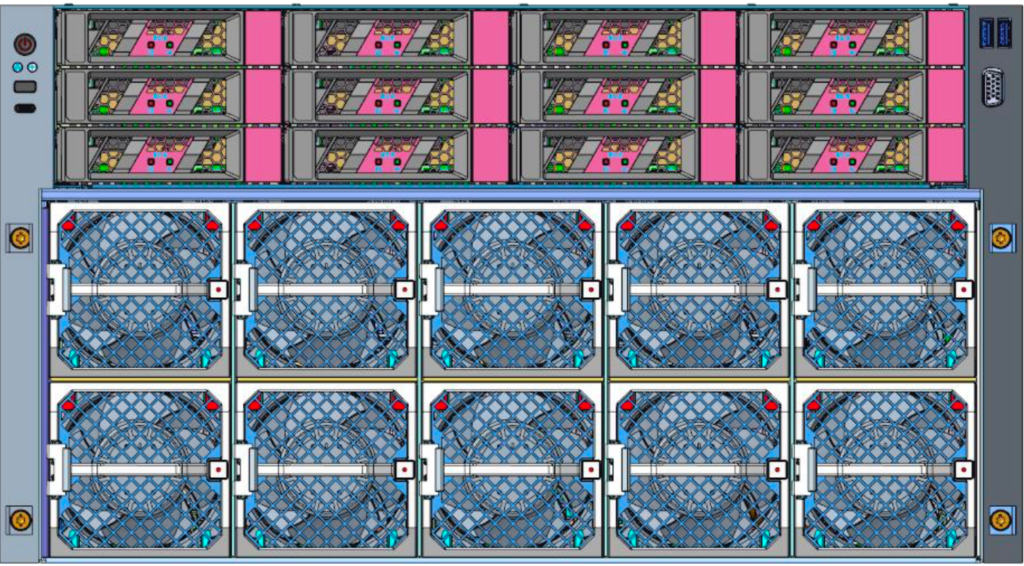

Front View

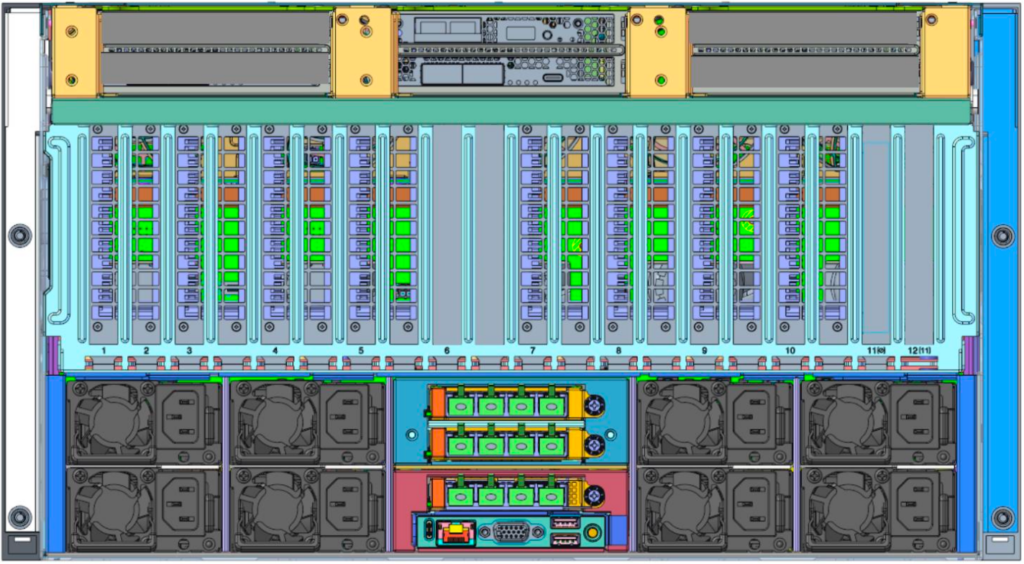

Rear VIew
Products Features
- Ultimate Performance with Multi-Layer Expansion
- Supports 2 x 4th/5th Generation AMD EPYC processors with up to 192 cores per CPU.
- Accommodates up to 24 DDR5 memory modules at a maximum frequency of 6400 MT/s, delivering a 71% boost in memory bandwidth.
- Fully compatible with 2-8-5 network topology.
- Reversible tray design enables abundant PCIe expansion capacity.
- Superior Cooling for High Efficiency & Stability
- Innovative split cooling design delivers an 87% improvement in cooling performance.
- Custom patented fans increase airflow by 30% while cutting power consumption by 15%.
- Streamlined O&M & Intelligent Management
- Tool-free maintenance design enables fast disassembly and assembly of peripheral components to drastically shorten maintenance time.
- Out-of-band visual management allows remote precise location of physical hardware, further optimizing operation efficiency.
- The system automatically records crash logs which can be viewed and downloaded online for accurate fault localization.
- It monitors and reports the health status of key components, enabling intelligent full-lifecycle service for the device.
